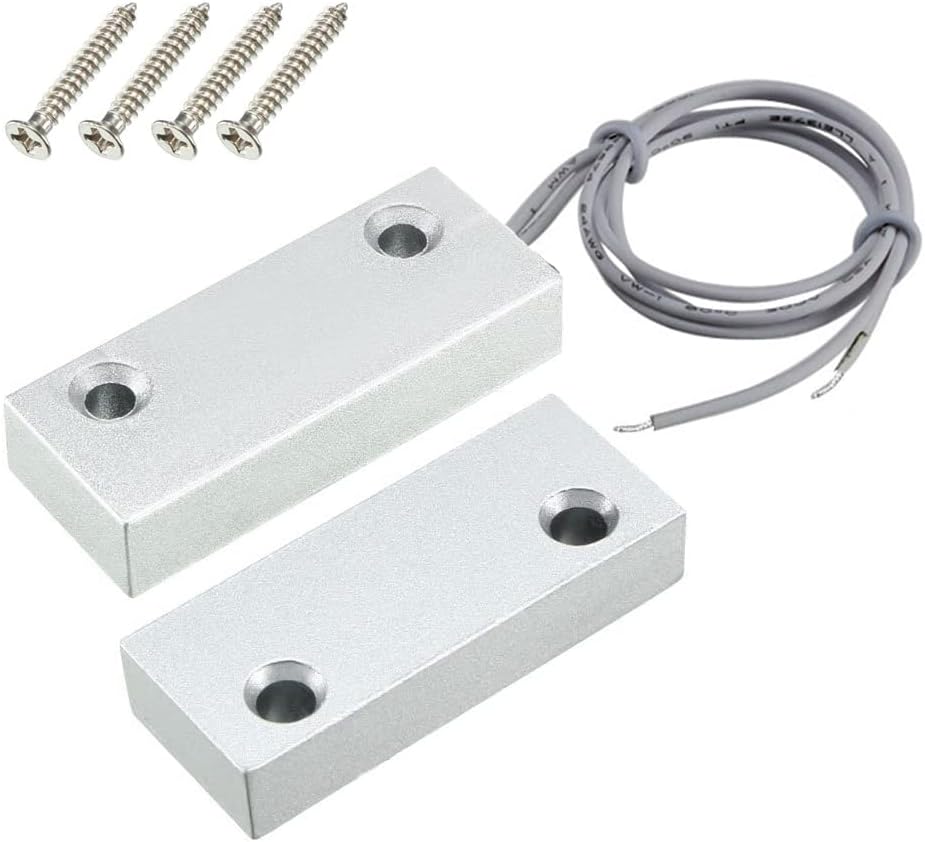

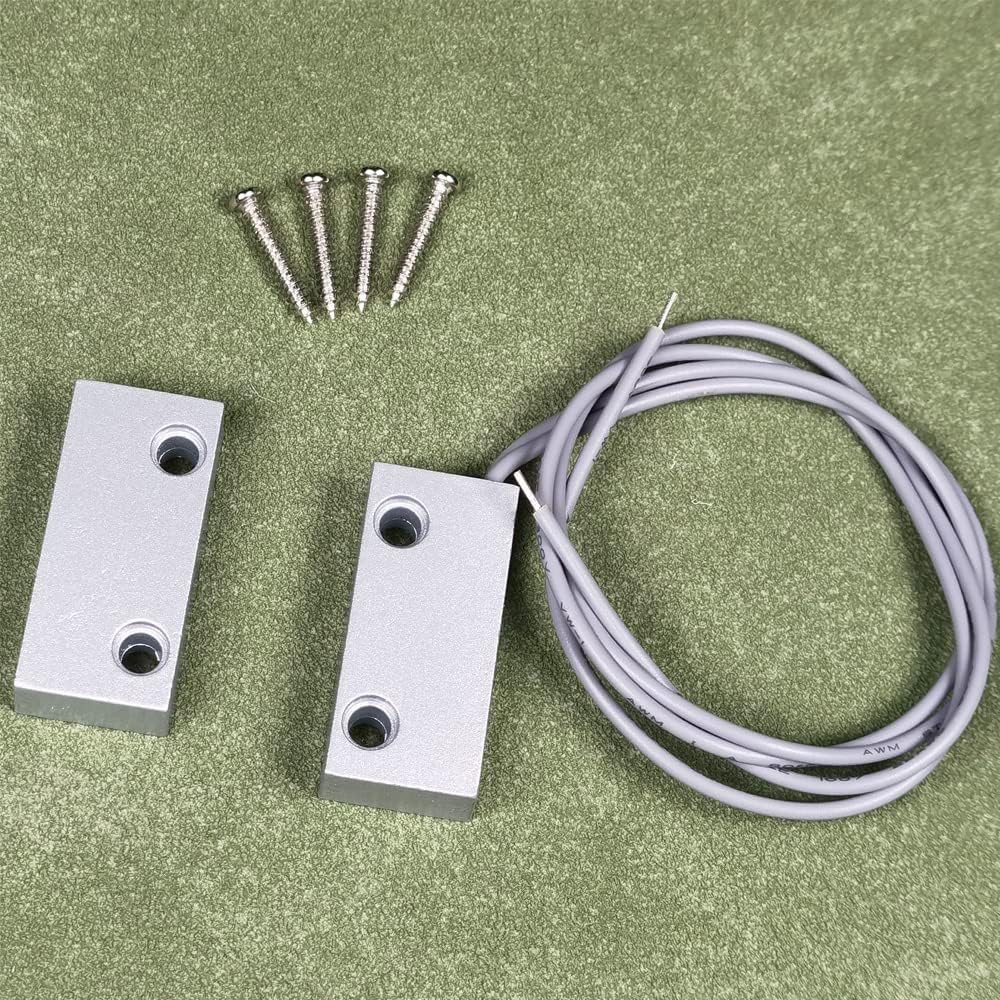

Home Security Wired Rolling Door Contact 0~100V/0.5Amp Magnetic Reed Switch MC-51 Alarm Sensor Magnetic Switch with 2 Wires for N.C. Applications

Overview

• Operation Mode : Off
• Current Rating : 0.5 Amps
• Operating Voltage : 100 Volts
• Connector Type : Screw
• Brand : Gebildet
• Terminal : Screw
• Circuit Type : 1-way
• Actuator Type : Push Button
• Contact Material : Metal
• International Protection Rating : IP65
• Switch TypeReed Switch : MaterialZinc
• : Switch TypeReed Switch
• : MaterialZinc
• Mounting TypeThrough Hole Mount : Specification MetIp65
• : Mounting TypeThrough Hole Mount
• : Specification MetIp65

About this item

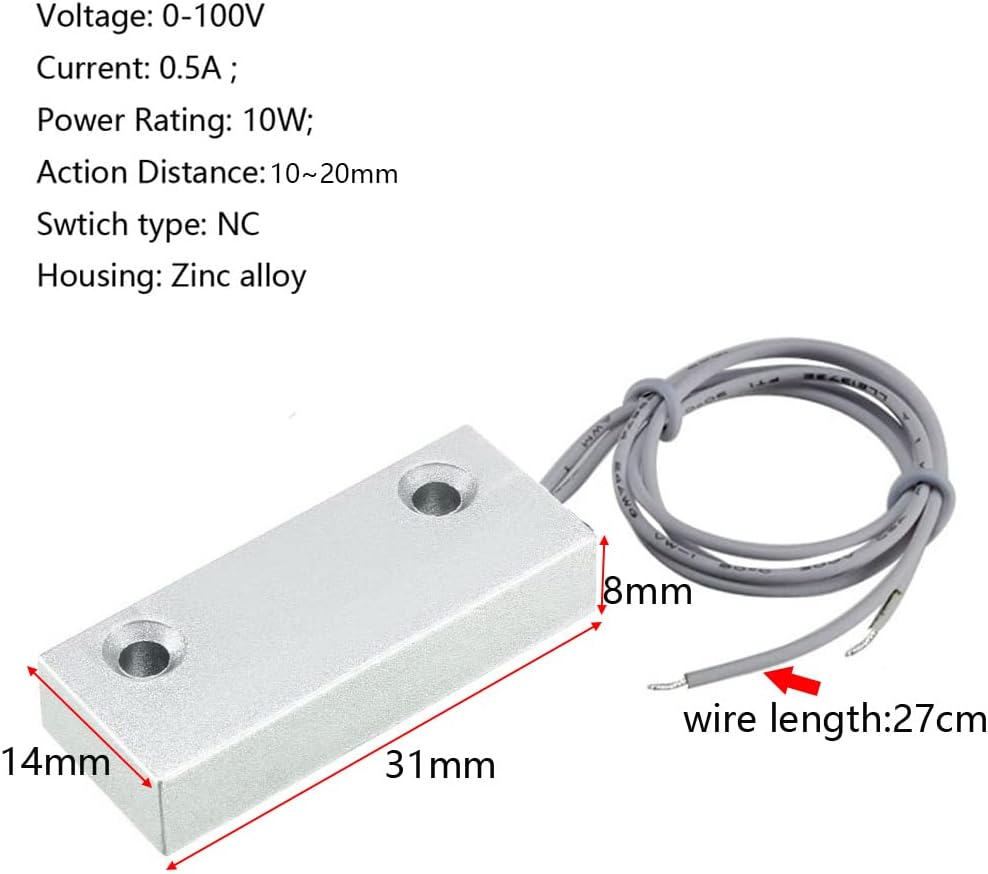

• [Specification] - Current: 0.5A ; Voltage: 0-100V ; Power Rating: 10W; Action Distance: 10~20mm.

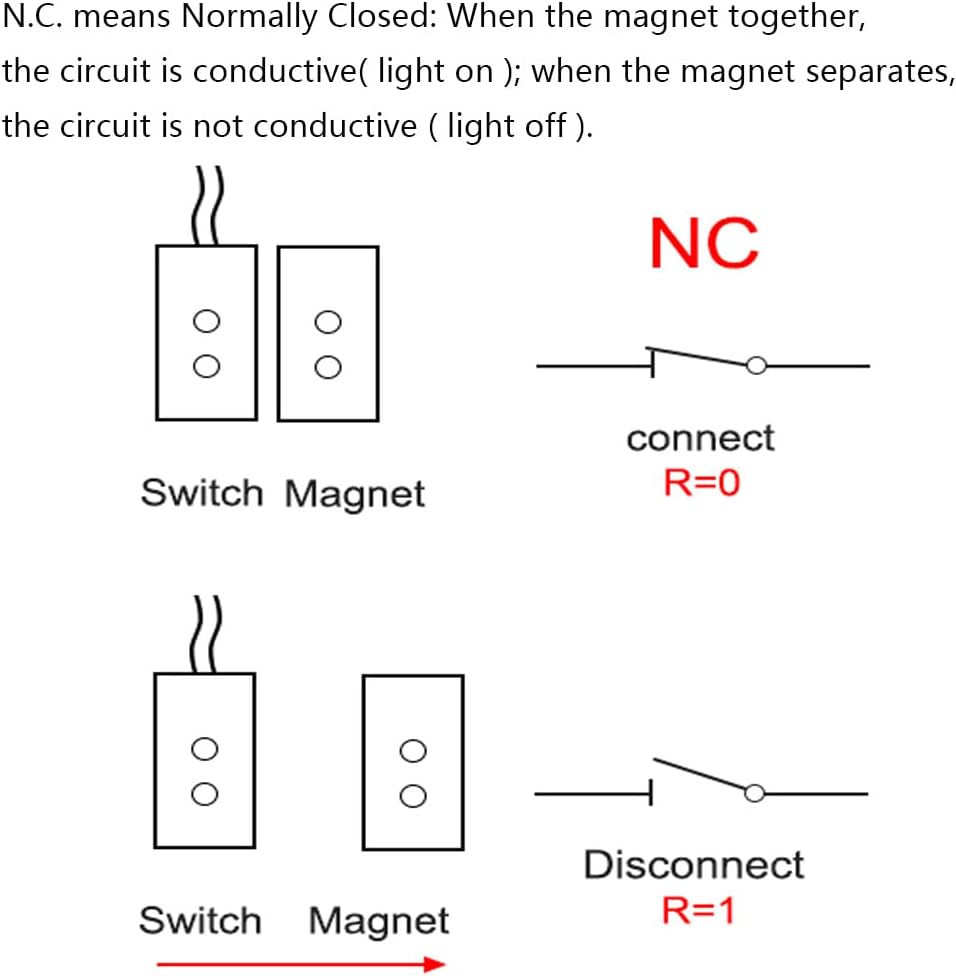

• [N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). . When make order, pls check carefully!

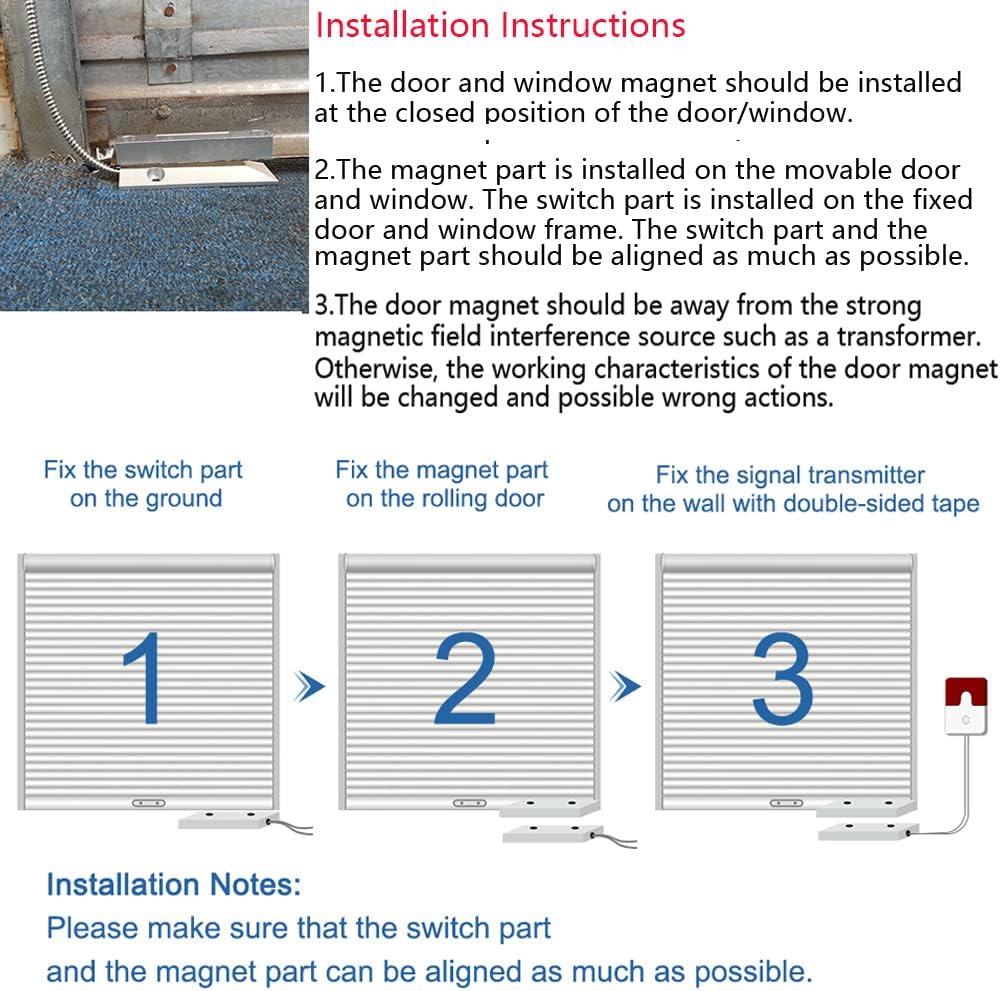

• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

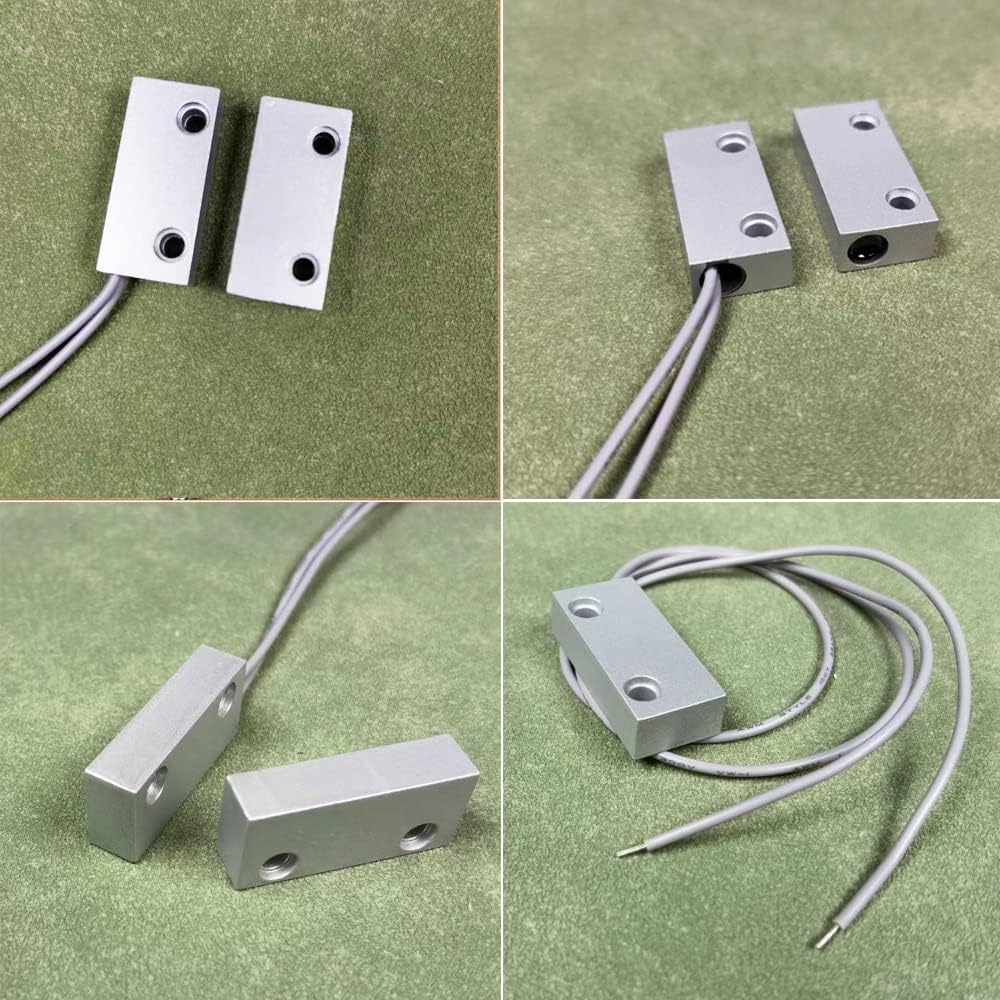

• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance.
